Orbital Anatomy

The orbit is a bony pyramid roughly 40 mm deep that houses and protects the eyeball, its six muscles, the optic nerve, and the lacrimal gland. Understanding orbital anatomy is essential for evaluating proptosis, orbital fractures, tumors, and the changes that occur in thyroid eye disease.

Anterior view of the orbital bones — Anterior orbital anatomy

Lateral view of orbital anatomy — Lateral orbital anatomy

Overview

The orbit is shaped like a pear or four-sided pyramid with its apex pointing posteriorly toward the optic canal. It is widest approximately 1 cm behind the orbital rim. Volume is approximately 30 mL in adults, of which the globe occupies about 6.5 mL.

The four walls of the orbit — roof, floor, medial wall, and lateral wall — are each composed of different bones and have different clinical vulnerabilities. The medial wall and floor are the thinnest and most commonly fractured; the lateral wall is the thickest and most surgically accessible.

Orbital Bones

Seven bones contribute to the orbital walls. Click any bone in the interactive diagram below to identify it and learn its anatomical role.

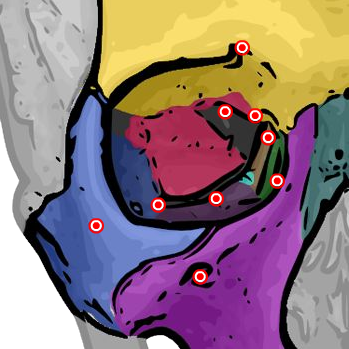

Click any region to identify the orbital bones and foramina.

Frontal bone

Forms the orbital roof and supraorbital rim

Zygomatic bone

Forms the lateral wall and lateral orbital rim — the thickest, most accessible wall

Maxillary bone

Forms the orbital floor and inferior rim; fractures here cause blow-out injuries

Sphenoid bone

Greater and lesser wings form the posterior lateral wall and orbital apex

Ethmoid bone

Forms the medial wall (lamina papyracea — paper-thin); borders the sinuses

Lacrimal bone

Small bone at the medial wall containing the lacrimal sac fossa

Palatine bone

Small contribution to the postero-medial floor near the apex

Axial CT scan of the orbit — Axial CT — orbital walls

Sagittal view of the orbit — Sagittal view — orbital depth

Extraocular Muscles

Six extraocular muscles (EOMs) control all eye movements. Five arise from the common tendinous ring (annulus of Zinn) at the orbital apex; the inferior oblique originates from the antero-medial orbital floor.

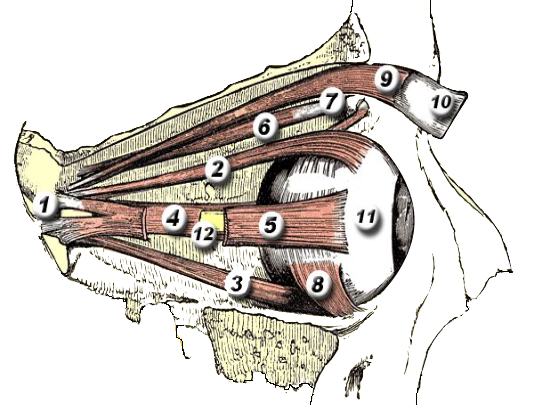

Click any marker to identify the extraocular muscles.

Medial rectus (MR)

Adduction (moves eye inward)

Nerve: CN III

Lateral rectus (LR)

Abduction (moves eye outward)

Nerve: CN VI

Superior rectus (SR)

Elevation, intorsion, adduction

Nerve: CN III

Inferior rectus (IR)

Depression, extorsion, adduction

Nerve: CN III

Superior oblique (SO)

Intorsion, depression, abduction

Nerve: CN IV

Inferior oblique (IO)

Extorsion, elevation, abduction

Nerve: CN III

Orbital Fat Compartments

Orbital fat cushions and supports the globe and optic nerve. It is divided into two main compartments by the extraocular muscles and their intermuscular septa:

Intraconal fat — inside the muscular cone formed by the four rectus muscles. Contains the optic nerve, ophthalmic artery, and cranial nerves. The most critical surgical space; manipulation here risks optic nerve injury.
Extraconal fat — outside the muscular cone, between the muscles and the orbital walls. More accessible surgically; the lacrimal gland sits in the superolateral extraconal space.

Optic Nerve & Orbital Apex

The orbital apex contains the optic canal — through which the optic nerve (CN II) and ophthalmic artery pass — and the superior orbital fissure, which transmits CN III, IV, V1, VI, and the ophthalmic veins.

Optic Canal

Approximately 8–10 mm long, 5 mm wide. The optic nerve has a 20–30 mm course within the orbit — slightly longer than the 18 mm direct distance — giving it a sinuous path that accommodates globe movement without traction.

Optic Nerve Compression

When enlarged extraocular muscles compress the optic nerve at the apex (as in severe thyroid eye disease), vision loss may occur — making color desaturation an important early sign. This is a surgical emergency requiring decompression.

Vascular Supply

The orbit's blood supply comes from the ophthalmic artery — a branch of the internal carotid artery — which enters through the optic canal. Key branches include:
